Document Management (File, Templates, Layout)

Managing Multiple Documents

Criterion provides a flexible tab-based system for working on multiple files simultaneously.

Supported file types:

.critx (native Criterion documents)
.pdf (view-only)
Image files (.jpeg, .png) (view-only)

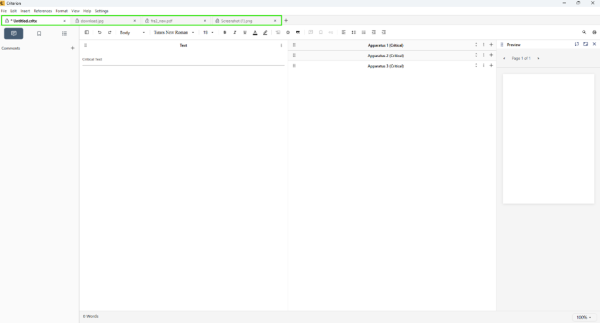

Tab Management Features:

Feature	Description
No duplicate tabs	If you attempt to open a file already loaded, Criterion brings the existing tab into focus instead of creating a duplicate
Full filename visibility	When a tab title is truncated, hovering over it displays a tooltip with the complete filename
Custom tab order	Reorder tabs horizontally using drag and drop to suit your workflow
Safe tab closure	Closing a tab with unsaved changes triggers a confirmation dialog with three options: Save, Don't Save, or Cancel
Unsaved changes indicator	An asterisk (*) appears next to the filename in the tab when modifications have not been saved

Tab and Box Management

Managing Apparatus Boxes

Within a .critx document, you can organize critical content using up to 8 apparatus boxes, with specific type constraints:

Box type limits:

Maximum one box each of: Inner Margin, Outer Margin, Section Notes, and Page Notes
Up to four additional boxes of Critical type only

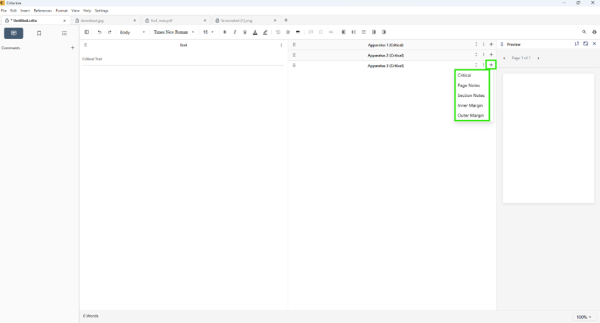

Adding boxes: Click the “+” button next to the apparatus area to add a new box (default type: Critical)

Vertical reordering: Apparatus boxes can be reordered vertically via drag and drop. This order is persisted across sessions.

Expand/Collapse: Each box can be expanded or collapsed using the toggle button on its title bar.

Contextual menu (accessed via the “⋮” icon) offers:

Change Type: only available if the box is empty
Rename: customize the box name (the type in parentheses cannot be edited)
Hide: toggle visibility in the editor (content remains in the document)<note tip>Hiding an apparatus box does not exclude it from print preview, PDF export, or layout rendering.</note>
Delete: removes the box and all its content (confirmation popup if text is present)
Export: exports the box content to Excel
Show/Hide Note and Comment Highlights: toggles visual highlighting

Managing Main Text Content

The main text is structured into four predefined sections:

1. Introduction
2. Table of Contents
3. Critical Text (mandatory)
4. Bibliography

You cannot:

Add new sections
Reorder sections
Collapse or resize the main text area

Context menu (right-click in the main text) provides:

Update Table of Contents: Manually refreshes the ToC based on current heading structure
Insert Bibliography: Inserts all citations used in the document at the cursor position
Toggle Highlights: Show or hide visual highlights for notes, comments, and bookmarks

Templates Management

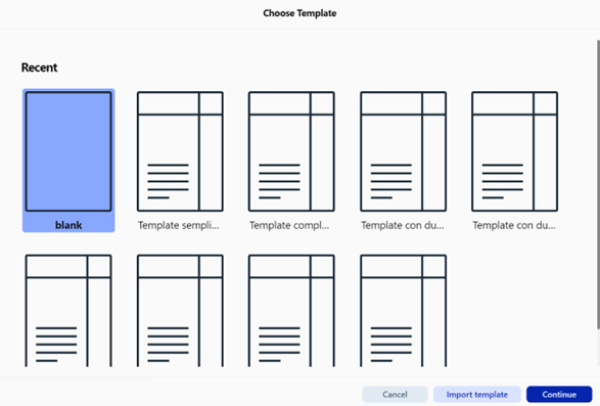

Template Selection

When creating a new document, users can select from:

Recent Templates: A list of templates recently used or created
Blank Template: A default template with basic structure and user-defined styles

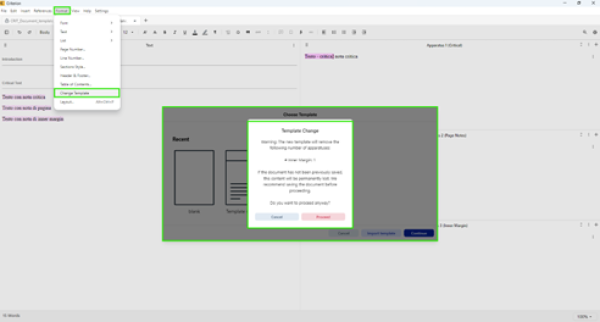

Changing Template During Editing

	Warning: It is strongly recommended to create a backup copy before performing the “Change Template” operation. Doing so may result in irreversible data loss.

1. Go to Format > Change Template
2. Select the desired template
3. If the new template has fewer apparatus types, a warning will appear showing which content will no longer be visible
4. Confirm to apply changes (irreversible)

Creating a Template ("Save as Template")

To save your current document layout as a reusable template:

1. Go to File > Save as Template
2. Or use keyboard shortcut: Ctrl+Shift+S (Windows/Linux) / ⇧⌘S (macOS)
3. The template is saved as a .TML file (JSON format) in the Criterion templates folder

Templates include:

Document structure and sections
Paratextual elements (headers, footers, page numbers)
Custom styles and formatting rules

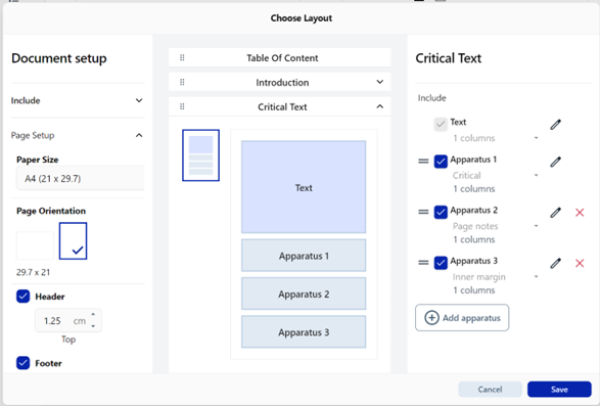

Layout Setup

Access layout configuration via:

Creating a new document: File > New > Blank Layout > Continue
Editing existing document: Format > Layout

Document Setup

Configure general layout settings:

Setting	Options	Default
Sections to include	Table of Contents, Introduction, Critical Text (mandatory), Bibliography	All except ToC optional
Paper size	A3, A4, A5, A6, Custom	A4
Orientation	Portrait, Landscape	Portrait
Margins	Top, Bottom, Left, Right (cm)	1.25 cm all sides
Inner/Outer Margin for Notes	Custom value (cm)	0.5 cm

Critical Text Customization

Main Text:

Number of columns: 1 to 4

Apparatus:

Maximum: 8 apparatus sections
Types available: Critical (default), Page Notes, Section Notes, Inner Margin, Outer Margin
Apparatus sections are always displayed in one column (LaTeX constraint)

	Warning: LaTeX Limitation: If you set up multiple columns in the main text, we recommend avoiding apparatus boxes containing content referenced in the text. Due to technical constraints with the reledmac package, this combination may cause rendering errors in print preview.

File-Level Page Setup

For global page settings, use File > Page Setup:

Paper size and orientation
Header/footer positions
Document margins

Settings here override defaults and are consistent with Layout Setup configuration.
